在现场演出环境中，实时多轨录音的需求日益增加，01V96i正是为了满足此类需求应运而生。01V96i采用了USB2.0连接方式—它可以有效地帮助您将自己的录音棚随带于身。 仅通过一根USB数据线完成16 in/16 out 96kHz 的实时高品质音频数据在调音台与PC端DAW数字音频工作站的无缝传输，专业〜录音作品的录制和编辑将变得的简便。同时，USB2.0连接还负责两路MIDI控制数据的通讯，这样您便可以通过附赠的Cubase AI软件将您在调音台上精确的物理控制内容和软件端控制完美同步连接起来。
| 01V96i | ||
|---|---|---|
| Mixing capability | Mixing channels | 32 Mono + 4 Stereo |
| GROUP | 8 | |
| AUX | 8 | |
| MAIN | Stereo | |
| Input channel functions | Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan | |
| Output channel functions | Attenuator, 4-band PEQ, Compressor, Delay | |
| On-board processors | 4x SPX multi effectors | |
| I/O | Mic inputs | 12 |
| Phantom power | +48V DC; ON/OFF per 4ch | |
| Line inputs | 2x Stereo, 2x 2tr in | |
| AD converter | 24-bit; 128-time over sampling | |
| Line outputs | Stereo output, Monitor output, 4x Omni output | |
| DA converter | 24-bit; 128-time over sampling | |
| Digital I/O | ADAT (8-in/8-out), 2tr in/out | |
| Expansion slots | Mini-YGDAI (16-in/16-out) | |

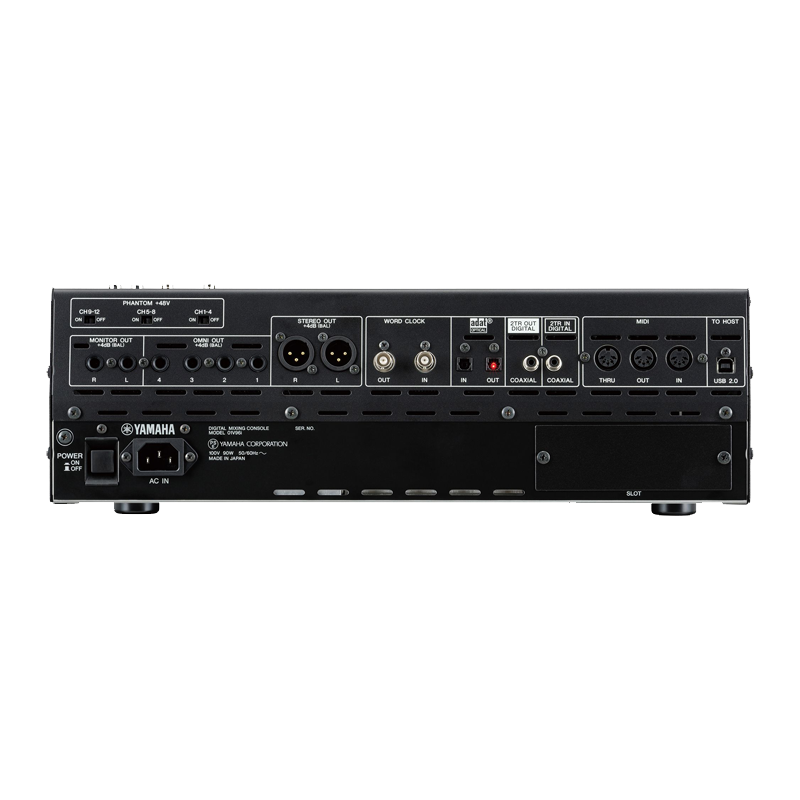

| Control and others | To Host(USB), MIDI, Word clock I/O | |
| Internal processing | 32bit, Accumulator: 58bit | |
| Sampling frequency rate | Internal | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| External | 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) | |
| Signal delay | Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz) | |
| Total harmonic distortion | CH INPUT to STEREO OUT: Less than 0.05%, 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 48kHz) / Less than 0.05%, 20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 96kHz) | |
| Frequency response | CH INPUT to STEREO OUT: 0.5, -1.5dB, 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5, -1.5dB, 20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz) | |
| Dynamic range | 110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz | |
| Hum & noise level | Equivalent input noise | -128dBu Equivalent Input Noise. |
| Residual output noise | -86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT: STEREO fader at nominal level and one CH INPUT fader at nominal level | |
| Crosstalk | -80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output | |
| Power requirements | AC100V, 120V, 220-240V 50/60 Hz | |
| Power consumption | 90W | |
| Dimensions | W | 436mm; 17-1/8in |
| H | 148mm; 5-7/8in | |
| D | 548mm; 21-5/8in | |
| Net weight | 14kg; 30.86lbs | |
| Others | Fader: 100mm motorized x17 | |
